FORTEC IF462 ASV Board – Analog Video (CVBS/S-Video) to HDMI Converter

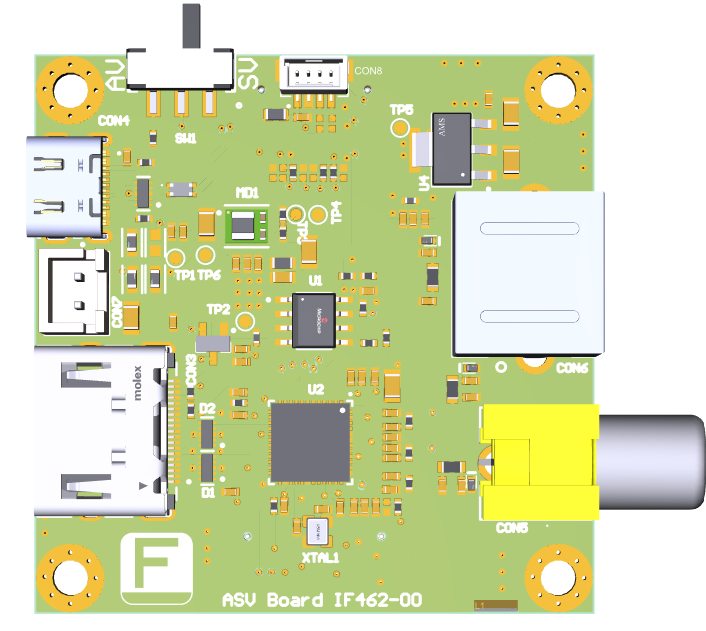

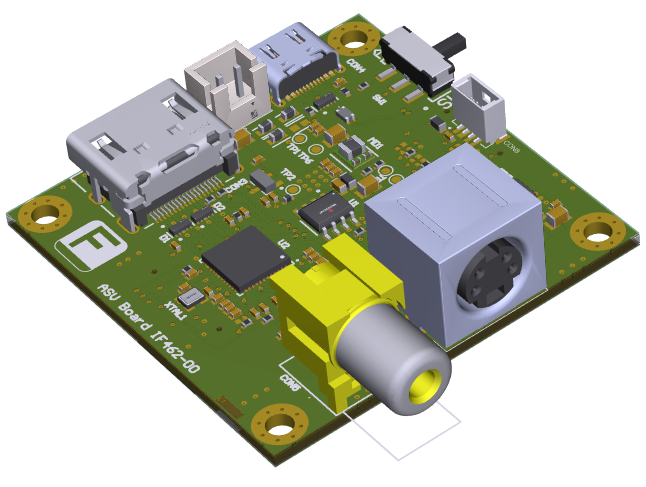

The FORTEC IF462 ASV Board is a high-performance video conversion module engineered around a single-chip System-on-Chip (SoC) architecture. By integrating a 10-bit ADC, video decoder, hardware scaler, and HDMI transmitter into a ultra-compact 50 × 50 mm footprint, it provides a cost-effective, space-saving solution for upgrading legacy analog video feeds to digital HDMI displays.
KEY Features
- Supports CVBS and S-Video (Y/C)Â
- Manual input selection between Y/C and CVBS.Â
- Automatic NTSC/PAL/SECAM decoding with adaptive 3D comb filter.Â
- Integrated HDMI transmitter, compliant with HDMI 1.3 / DVI 1.0.Â
- Supports resolutions up to 1080p.Â
- Single-chip solution with minimal external components.Â
- I²C control interface for flexible configuration.Â
- Low power consumption, single 3.3 V operation.
Applications:
- Display System Retrofitting: Upgrading legacy equipment to output to modern digital monitors.
- Industrial Display Solutions: Bridging analog controllers with modern embedded panel displays.
- Camera Interfacing: Processing analog CCTV or inspection camera feeds for digital display outputs.Â
- Custom Display Converters: Integrating into OEM hardware where space and power efficiency are critical.
Technical Specifications
- Input Signals: CVBS, S-Video (Y/C)Â
- Output Signal: HDMI 1.3Â
- Power Supply: USB-C / 5V DCÂ
- Power Consumption: 1.25WÂ

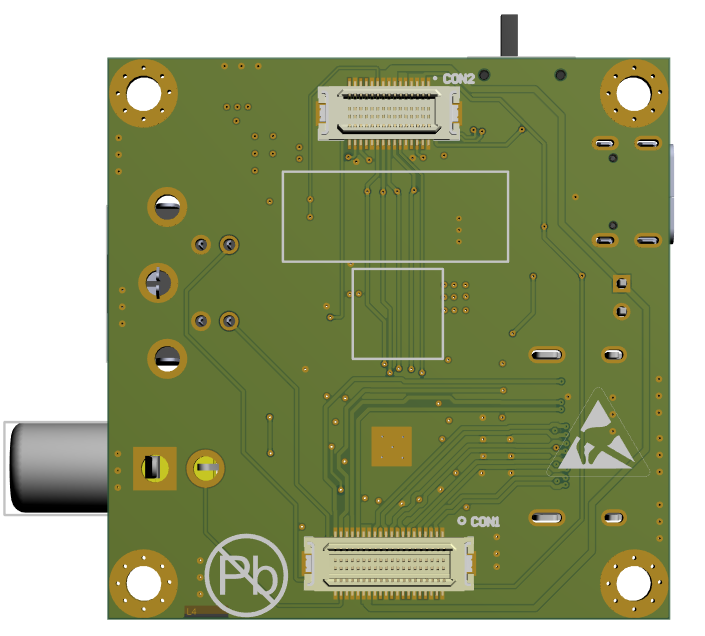

- Interfacing: Board-to-board power and signal headers
