SYSTEM MANAGEMENT BOARD

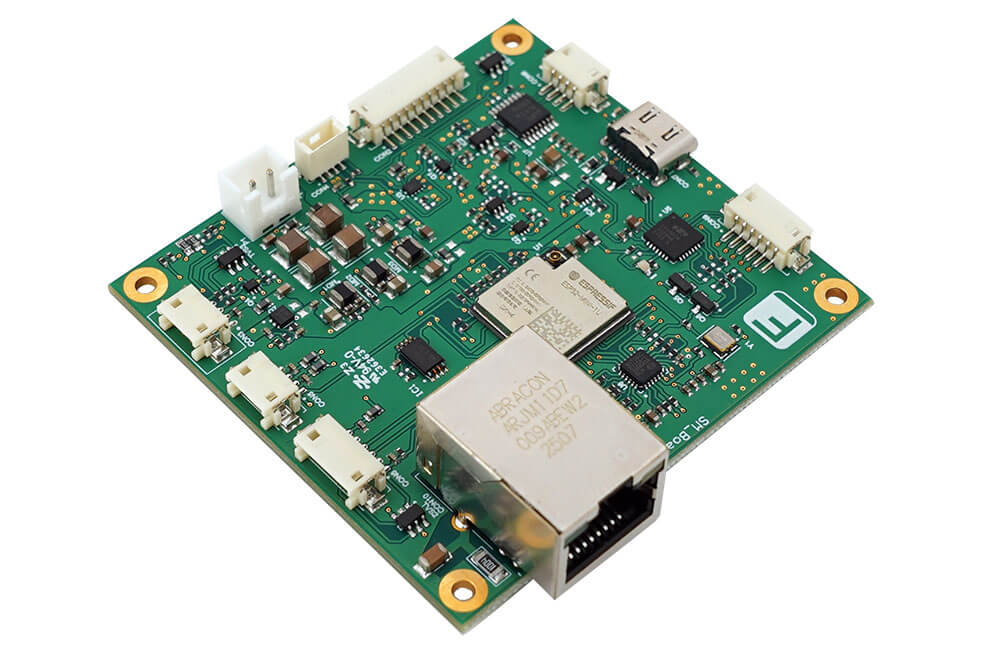

The IF461-00 System Management Board (SMB) is an innovative co-processor that adds intelligent system management functions, such as monitoring, diagnostics, and control to display interface boards.

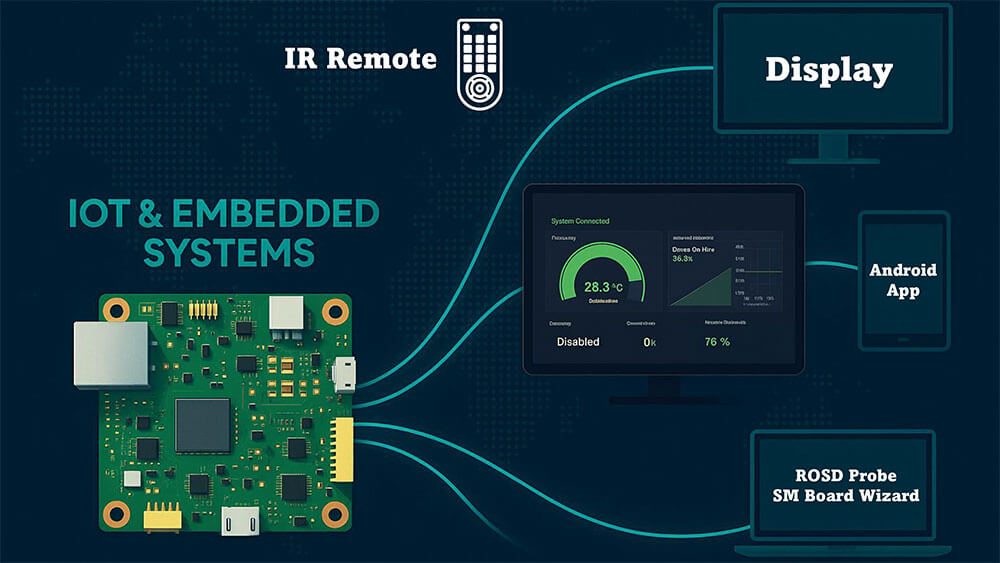

The IF461-00 SMB Dashboard provides real-time data like live statistics and alerts at a glance, while also offering control options for optimal operation of your devices. Existing systems can also be upgraded with the IF461-00 SMB.
Technical Highlights
- ESP32 Mini-1-based design; compact and powerful
- Connections for fans and sensors (light, IR, temperature) for optimal device adaptation to environmental conditions
- USB-C interface for easy flashing and configuration Operating temperature: -20 °C to +85 °C, robust for industrial applications Network and diagnostic interfaces: UART, Wi-Fi, Ethernet, BLE
- Remote OSD Control: remote control of on-screen displays via PC or Android app
- Cloud support in preparation
- Firmware flashing and configuration management via the SM Flasher
- PA Kit integration directly from XML or SVN repositories
- Config Builder for convenient creation, export, and application of system configurations
All Advantages at a Glance:
- Unified management for firmware, configuration, and monitoring
- Easy integration into existing systems thanks to open interfaces
- Reduced development time through central tools and automated processes
- Future-proof thanks to planned cloud integration and flexible scalability
- Attractive pricing
SM Board Dashboard
Key Points
- live stats in one place
- Instant alerts and smarter decisions
- Easy control from anywhere
- Reliable data foundation
- Scales from one device to hundreds
For project applications, we can customize the IF461 SMB according to your requirements Just Contact us!
Main Features:
- Flash firmware, partions, and configurations vis SM Flasher
- Manage PA kits directly from XML and SVN repositories
- Build, export, and apply system configurations using config Builder
