Embedded Box PC | 13. Gen. Intel® Core™

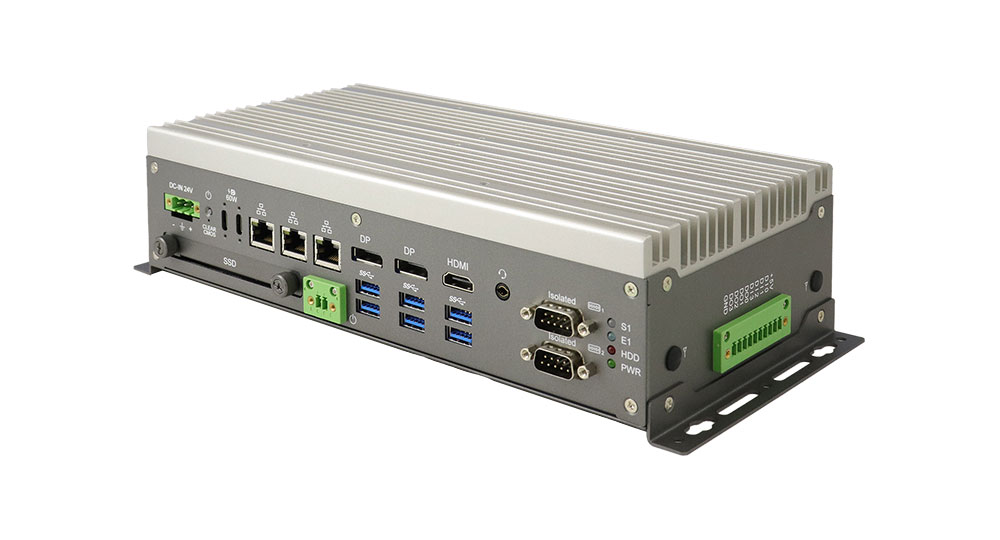

The AC313 is a fanless, high-performance, and flexibly expandable box PC designed for modern edge AI and industrial applications. It combines high computing power with versatile interfaces and robust protection features for industrial use.
Features:
- Compact Expandable System for MBE330 proprietary board
- 13th Gen Intel® Core™ i7/i5/i3/U300E Processors
- Supports dual-channel DDR5-5200 SO-DIMM
- 2x USB Type-C (DP Alternate Mode), supports up to 60W per port
- Removable drive bay for 2.5 inch HDD/SSD
- Over/Under/Reverse voltage protection
- Supports DIN-rail mount & wall mount
- Supports TPM 2.0 hardware security
- Isolated COM 1 and COM2 HDMI, 2x DP++,Â
- 2x USB-C (DP Alternate Mode) supports up to 4x independent displays
- 6x USB 3.2 4x internal M.2 sockets for 2x storage, Wi-Fi/BT, and 4G/5G
Ordering Information:
- ACS313-U3 | Intel® Raptor Lake U300E Processor
- ACS313-i3 | Intel® Core™ i3-1315UE Processor
- ACS313-i5 | Intel® Core™ i5-1335UE Processor
- ACS313-i7 | Intel® Core™ i7-1365UE Processor
Technical Data
 Manufacturer: iBase
Product Series: Embeddes Systems
Product Category: Box PCs
                Edge AI System
CPU Type: Intel® Core™ i
          Intel® Raptor Lake
CPU: U300E
     i3-1315UE
     i7-1365UE
     i5-1335UE
Memory: 2x DDR5-5200 SO-
        DIMM, Max. 96GB
Temperature Range Top: -10...+50°C
                      -10...+60°C
Temperature Range Tst: -20...+80°C
Interfaces: COM
         USB 3.2
         DisplayPort 1.4
         HDMI 2.0
         Audio jack
         USB-C, 2 x
         2.5 GbE
