Digital Display Ultimate Guidance
How do I choose the best display for my needs?
This is a question that is asked all the time and for good reason. Choosing the right display requires solid technical understanding. To simplify the process, we’ve collected all the essential information and distilled it into clear, practical decision keys.
Step 1: Understanding the display Technologies:

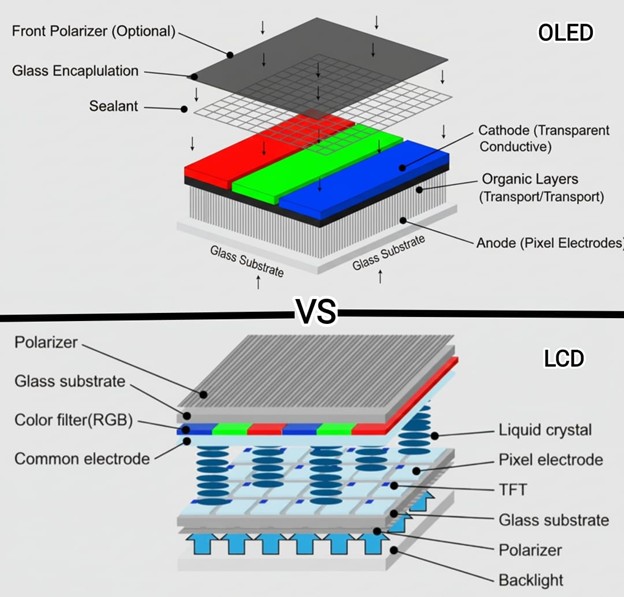

There are four types of display Technologies: LCD, OLED, AMOLED, andMICROLED
1. LCD (Liquid Crystal Display)
Definition: LCD is a non-emissive display technology that relies on a backlight to produce images. It uses liquid crystals to rotate polarized light, effectively acting as "shutters" to block or let light through.
How it works: A constant LED backlight sits behind the panel.The liquid crystals open and close to let that light pass through red, green, and blue color filters to create the image.
2. OLED (Organic Light-Emitting Diode)
Definition: OLED is an emissive display technology that does not require a backlight. Each pixel is made of organic material that emits when electricity is applied.
How it works: Because every single pixel produces its own light, OLED panals can turn individual pixels completely off, resulting in true blacks and an effectively “infinite” contrast ratio.3. AMOLED (Active Matrix Organic Light-Emitting Diode)
Definition: AMOLED is a specific type of OLED technology used in the most modern smartphones and tablets.
How it works: The "AM" stands for Active Matrix. It refers to the Thin Film Transistor (TFT) backplane that controls each pixel. While a standard (Passive Matrix) OLED controls rows of pixels, an Active Matrix controls every single pixel individually and maintains its state faster and more precisely.
4. MicroLED (Micro Light-Emitting Diode)
Definition: MicroLED is widely considered the "holy grail" of display technology. It is an emissive display (like OLED) but uses microscopic inorganic LEDs instead of organic material.
How it works: Imagine a stadium jumbotron but shrunk down until the LEDs are microscopic—smaller than a grain of sand. Like OLED, each pixel produces its own light. However, because it uses non-organic material (Gallium Nitride), it doesn't degrade like OLED.
Which display is right for you?
· Choose LCD if: You are budget-conscious,, work in a very bright envirnoments, or need a display for static work (spreadsheets) where burn-in is a concern.
· Choose OLED/AMOLED if: You want superior image quality, deep blacks, and excellent contrast for movies, gaming, or premium mobile devices.Choose MicroLED if: You have a massive budget and want the most advanced, future-proof display technology available today (mostly for wall-sized home theater setups).
Step 2: Understanding TFT types:
|
Feature |
TN (Twisted Nematic) |
VA (Vertical Alignment) |
IPS (In-Plane Switching) |
|
Definition |
The oldest LCD technology where liquid crystals twist at a 90-degree angle to control light passage. It prioritizes speed over image fidelity. |
A panel type where crystals are vertically aligned perpendicular to the glass substrates. They tilt when voltage is applied to let light through, blocking light very effectively when off. |
A technology where liquid crystals are aligned parallel to the glass planes and rotate within that same plane (horizontally). This alignment preserves color accuracy at all angles. |
|
Contrast |
Low (~1000:1). Blacks often appear as dark grey; the image can look "flat." |
Best (~3000:1 - 6000:1). Blocks light effectively to create deep, inky blacks. Comparable to entry-level OLEDs. |
Medium (~1000:1). Blacks are decent but suffer from "IPS Glow" (a slight white sheen) in dark rooms. |
|
Color |
Poor. Colors can look washed out or dull; limited color gamut coverage. |
Good. Vibrant colors, often with higher saturation, but less accurate than IPS. |
Best. The most accurate and consistent color reproduction. The standard for digital art. |
|
Angles |
Narrow. Colors distort or invert if you look from the side, top, or bottom. |
Medium. Better than TN, but suffers from "gamma shift" (colors wash out slightly) at extreme angles. |
Wide. The image looks virtually identical from any angle (up to 178 degrees). |
|
Speed |
Fastest. Lowest response times (pixel transition); minimal motion blur. |
Slowest. Prone to "Ghosting" (smearing trails behind moving objects), especially in dark scenes. |
Fast. Modern "Fast IPS" panels are now nearly as fast as TN, suitable for most gamers. |
|
Application (Best For) |
Professional E-Sports: Competitive shooters (CS:GO, Valorant) where raw speed > graphics.
Budget Builds: Basic office monitors. |
Home Cinema & Immersive Gaming: Watching movies in the dark or playing atmospheric single-player games.
Curved Monitors: Most curved screens use VA. |
Content Creation: Photo/Video editing.
General & High-End Gaming: The best "do-it-all" choice for AAA games and work. |
Conclusion:
The choice between these three comes down to picking your priority: Speed, Contrast, or Accuracy.
· TN is the Specialist: It is largely obsolete for the average user. It survives only because it is extremely cheap or extremely fast for pro-level competitive gaming.
· VA is the Movie Lover: It is the king of high contrast. If you use your screen in a dark room or love horror games and movies, the deep blacks of a VA panel offer the most immersive experience.
· IPS is the All-Rounder: It is the current market standard. It balances great color, wide viewing angles, and good speed. Unless you have a specific reason to buy the others (like wanting deep black
Step 3: LVDS VS V by One:
LVDS and V by One are both signals but choosing between them is a very important step.
|
Feature |
LVDS (Low-Voltage Differential Signaling) |
V-by-One HS (High Speed) |
|
Definition |
A legacy signaling standard that transmits data using a small voltage difference between two wires (a differential pair). It was the primary interface for 1080p and early 4K flat panels. |
A modern, open-standard electrical digital signaling standard designed by THine Electronics to replace LVDS. It uses advanced encoding to achieve much higher speeds over fewer cables. |
|
Status |
Legacy / Previous Standard. Widely used for older HD TVs, laptops, and monitors. |
Current / De Facto Standard. Used in virtually all new high-resolution (4K and 8K) and high refresh-rate display panels. |
|
Max Data Rate / Lane |
Low speed. Typically limited to 655 Mbps to 1.2 Gbps per differential pair before physical limits are reached. |
High speed. Supports up to 3.75 - 4.0 Gbps per differential pair. |
|
Clocking Method |
Data/Clock Separate. Requires a dedicated differential clock pair. This causes issues with timing skew (data and clock arriving at different times) at high speeds. |
Clock-Embedded (CDR). The clock is encoded and recovered from the data stream itself (Clock Data Recovery). This eliminates timing skew and reduces EMI. |
|
Cable Count for 4K |
A very high number of cables is required. For a 4K display, it can require 40 to 48 differential pairs (80–96 physical wires). |
Drastically reduced cable count. For a 4K display, it typically requires only 8 differential pairs (16 physical wires). |
|
Signal Robustness |
Less robust over longer distances or with higher interference. |
Highly robust due to 8B/10B encoding and built-in Equalizer circuits that "clean up" the signal at the receiver. |
Step 4: Choose the right board:

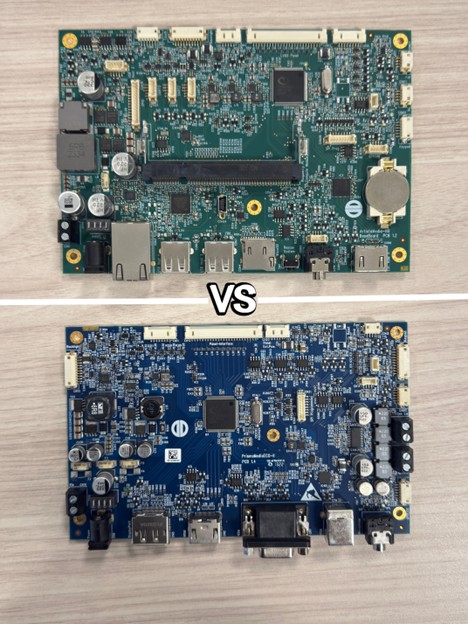

Choosing between Prisma and the Artista is very simple.
- Choose Prisma if you need a cost-effective display controller that acts purely as a signal converter. Choose the PrismaMediaEco-II for a 2k or less display and the Prisma4K for 4k displays.
EX: We use Prisma for VideoPoster.
- If you’re looking for a standalone solution that works like a mini pc and support internet, choose the Artista 3 for displays 2K and less and the Artista M4 for 4k displays.
- Ex: We use Artista for WebPoster.
